External Identity Providers

Sign in to SysManage using your existing LDAP/Active Directory or OIDC identity provider. External group membership maps to sysmanage roles automatically; a break-glass local-password fallback keeps you in the door if the directory is unreachable.

Overview

The external_idp_engine Pro+ module performs the actual authentication — an LDAP bind+search for AD/LDAP providers, or an OIDC authorization-code exchange. The OSS server holds the configuration tables, the Settings UI, and the routes that 402 without the engine loaded; the engine is stateless and never touches the database directly.

LDAP / Active Directory

For each LDAP provider, configure:

  • ldap_server_url — typically ldaps://ad.example.com:636. Plain ldap:// is supported but logged as a warning.
  • ldap_bind_dn + ldap_bind_password_secret_id — service account used for the user-search bind. The plaintext password lives only in Vault; the server unseals it before passing to the engine.
  • ldap_user_search_base + ldap_user_search_filter — where to look up the user. The filter must contain %s for the username, e.g. (sAMAccountName=%s) for AD or (uid=%s) for OpenLDAP.
  • ldap_group_search_base + ldap_group_search_filter — optional. When set, the engine queries the user's group memberships after a successful bind; matched cn values are passed to the role-mapping step.
  • ldap_tls_ca_bundle_path + ldap_connection_timeout — TLS verification bundle and connection timeout (default 10 s).

Authentication flow: the engine binds as the service account, searches for the user, then binds as the user with the supplied password to verify it. RFC 4515 filter-injection escapes are applied to every interpolated value.

OIDC

For each OIDC provider, configure:

  • oidc_issuer_url — the IdP's HTTPS root, e.g. https://login.example.com.
  • oidc_client_id + oidc_client_secret_secret_id — the application registered with the IdP. The client secret is Vault-stored.
  • oidc_redirect_uri — the URL the IdP bounces the browser to after the user signs in. Typically https://your-sysmanage.example.com/api/auth/oidc/{provider_id}/callback.
  • oidc_scopes — space-separated, default openid profile email. Add groups (or your IdP's group claim scope) when you want role mapping.
  • oidc_discovery_url — optional override for the well-known discovery doc. Defaults to {issuer}/.well-known/openid-configuration.
  • oidc_group_claim — name of the ID-token claim that lists the user's groups (default groups; some IdPs use roles or a custom name).

The login UI redirects the browser to /api/auth/oidc/{provider_id}/start, which 302s to the IdP's authorization endpoint with a CSRF-protecting state token. After the user signs in, the IdP returns to /api/auth/oidc/{provider_id}/callback?code=…&state=… and the engine exchanges the code for an ID token. The sub claim is matched against the user's external_subject column to locate the local account.

External Group → sysmanage Role Mapping

Each provider has a per-row mapping table that translates external group identifiers into sysmanage SecurityRole names. Rules:

  • If any of the user's external groups matches an entry's external_group, the entry contributes its role_name. Multiple matches are unioned.
  • If no entries match AND a mapping has default_for_unmapped=true, that entry's role is granted as a catch-all (e.g. read-only viewer for anyone who authenticates successfully but isn't in a privileged group).
  • The result is deduped before being applied to the user's role set. Roles already granted locally aren't touched — only the names that overlap with the mapping output get reconciled.

Linking sysmanage Accounts to External Identities

Existing sysmanage user rows pick up two new columns that link them to a directory:

  • external_idp_provider_id — FK to the provider row. NULL for local-only accounts (the default).
  • external_subject — IdP-side stable identifier. For LDAP this is the user's full DN; for OIDC it's the sub claim. Used to re-link if the userid changes.

OIDC users must have a sysmanage row provisioned before their first sign-in (the callback rejects unknown subjects with 403); LDAP users authenticate via the password form and follow the existing user-creation flow.

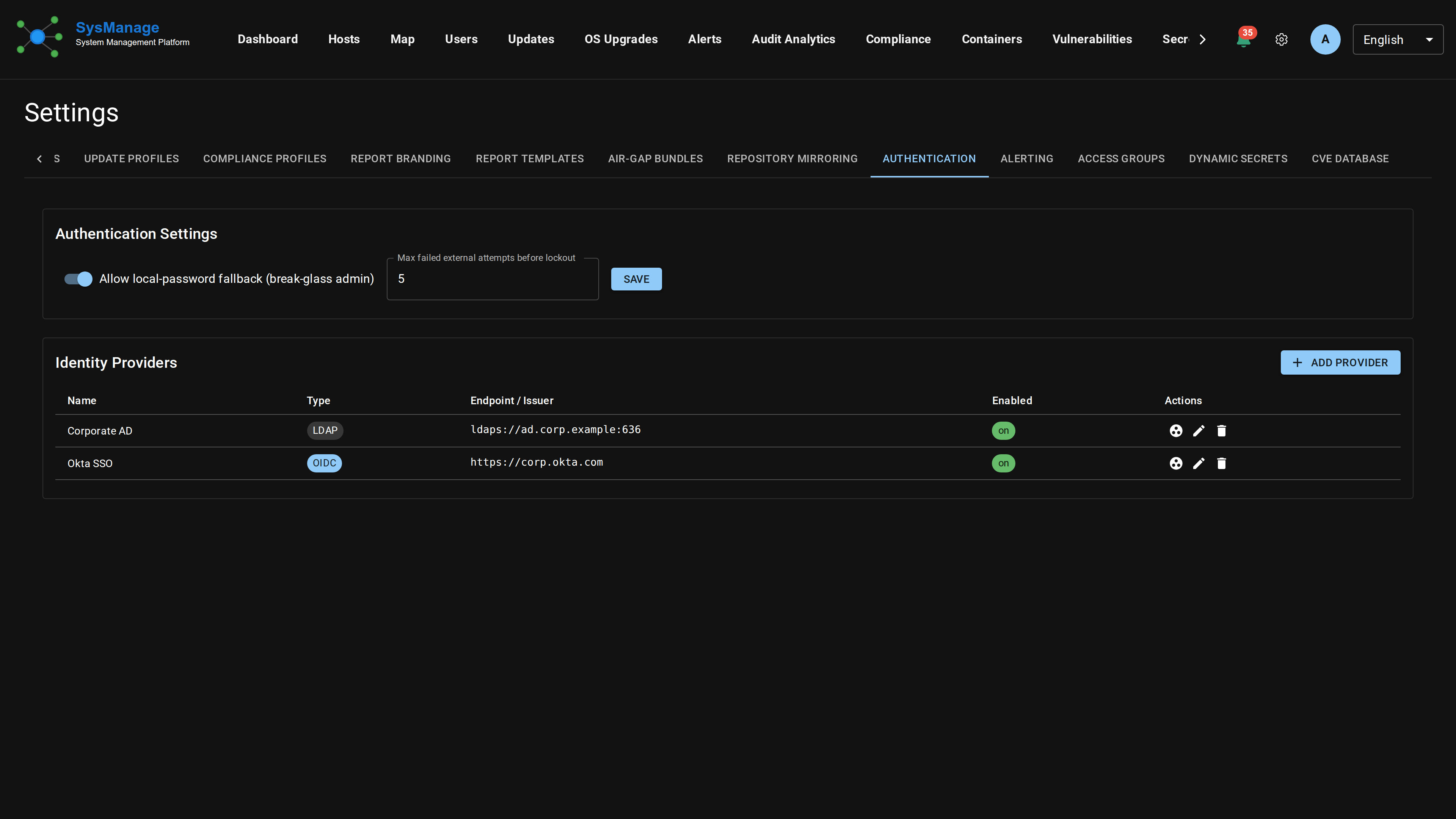

Local-Account Fallback

When the singleton external_idp_settings row has local_account_fallback=true and the engine declines (LDAP server unreachable, password rejected, etc.), the login flow falls through to local Argon2 verification. This is the break-glass admin path — the local password row stays usable even after a user is linked to an external IdP. Setting it to false hard-locks accounts to their external directory.

API Reference

Every route below returns 402 without external_idp_engine loaded.

  • GET /api/idp-providers — list providers
  • POST /api/idp-providers — create a provider
  • GET /api/idp-providers/{id} / PUT / DELETE — CRUD on a single provider
  • GET / POST /api/idp-providers/{id}/role-mappings — role mappings for the provider
  • DELETE /api/idp-providers/{id}/role-mappings/{mapping_id} — remove a mapping
  • GET / PUT /api/settings/idp — cross-provider settings
  • GET /api/auth/oidc/{provider_id}/start — anonymous; redirects browser to IdP
  • GET /api/auth/oidc/{provider_id}/callback — anonymous; exchanges code, returns session JWT
